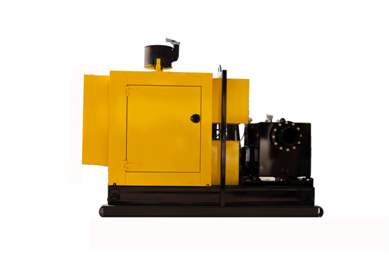

12 Inch Rotary Lobe with Quiet Pack Skid Mounted
|
PPSI Rotary Wellpoint Pump |
|
12RPQP-SK 12” Skid Unit Engine Enclosed
|
|
|
|
View and Print Specification Sheet
|
SPECIFICATIONS |
|||
|
Volume: |
2650 GPM Max |
||
|
CFM: |
348 CFM |
||
|
Ware Plates: |
Stainless Ware Plates |
||
|
Solids: |
Up To 2.5” Compressible |
||
|
Seals: |
Duronite Seal Assembly |
||
|
Working PSI: |
Up To 25 PSI |
||
|
Shut Downs: |
Hi – Low Vacuum |
||
|
ENGINE |
|||
|
Model: |
John Deere 4045TF290 Diesel |
||
|
Type: |
Water Cooled 4 Cylinder |
||
|
Start: |
12 Volt Electric |
||
|
Fuel: |
Diesel fuel |
||
|
Murphy Panel: |
Engine Safety Shut Down For Low Oil PSI & Hi Water Temp |
||
|
Horsepower |
74.1 @ 2300rpm |
||
|
PACKAGE |
|||
|
Skid: |
110” L X 44” W X 64” T With Engine Enclosure |
||
|
Fuel Tank: |
120 Gallons |
||
|
DBA: |
76 dba @ 23’ |
||
|
Weight |
5580 lbs |
||
|
OPTIONS |
|||
|
|||
|
STANDARD FEATURES |
|||
|
* Lifting Bail * Locking Fuel Cap * 8” X 8” * |
|||
|
|
|||
|
View and Print Specification Sheet Portable Pumping Systems Inc. 4760 Spring Ave-Clearwater, Fl 33762 www.PortablePumpingSystems.com PH: (727) 518-9191 FAX: (727) 525-1511
|
|||
